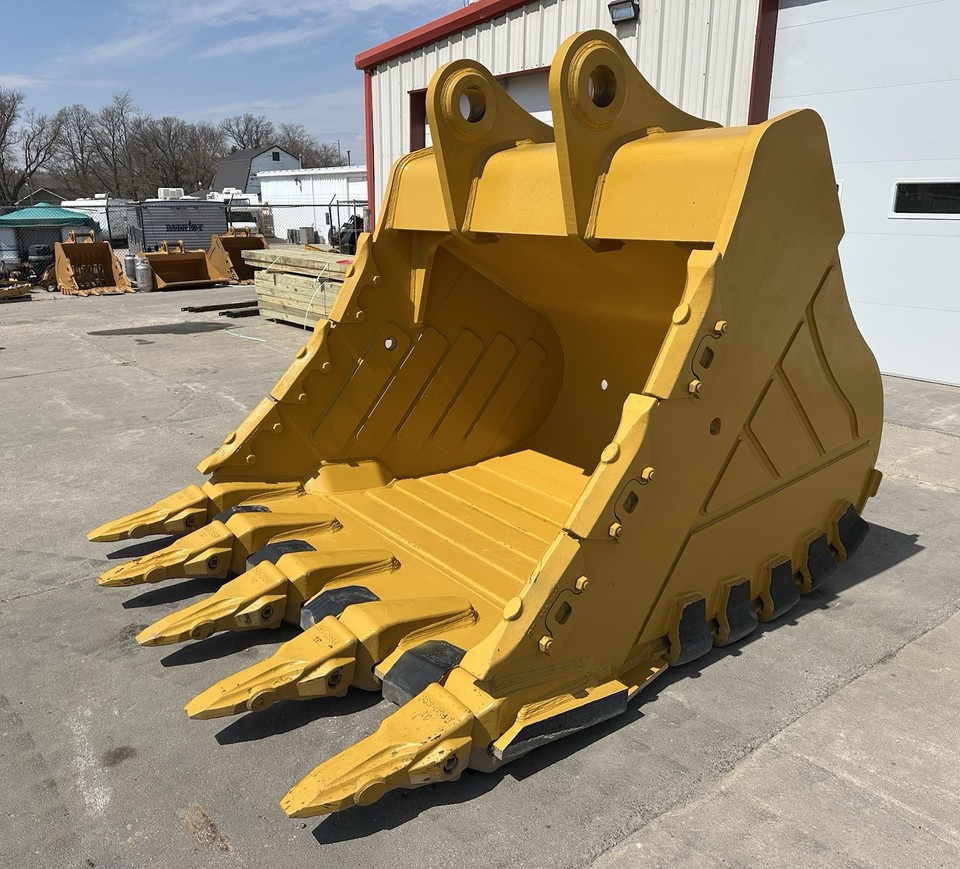

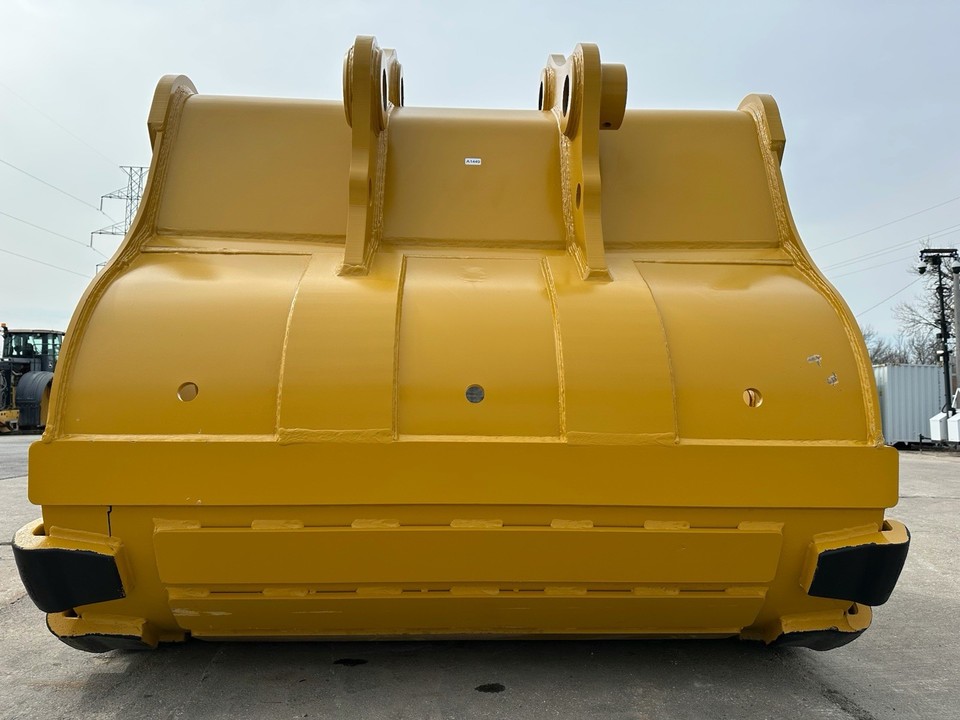

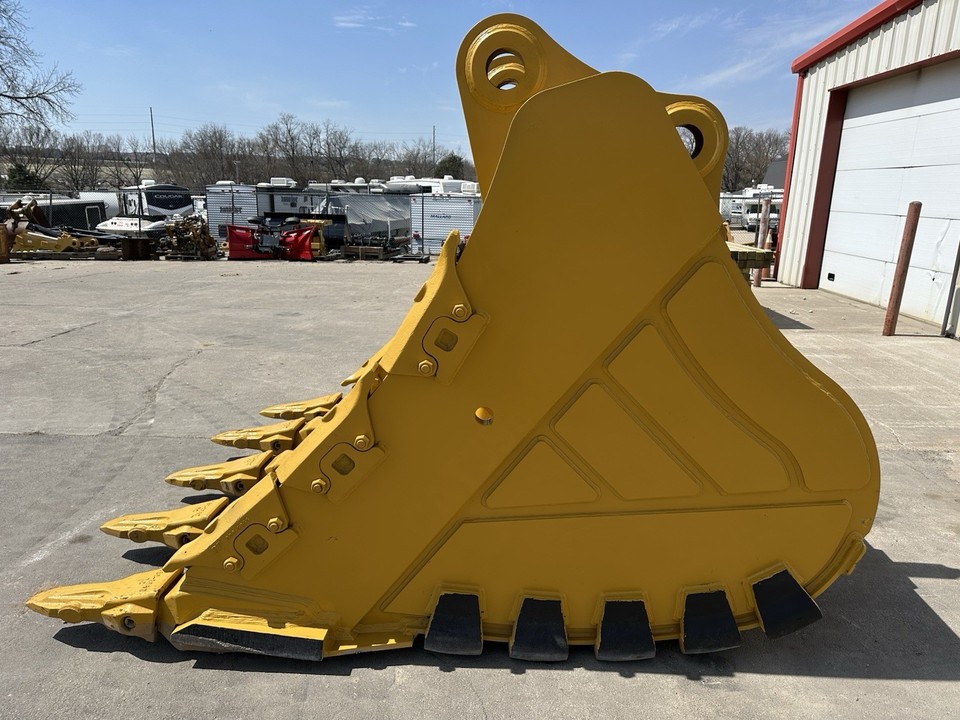

New 92″ HD Bucket JC Linkage
– Pins: 1 – 130mm pin 1 – 140mm pin
– Pin spread center to center: 27 1/2″
– Distance between ears: 25 5/8″
– Weight: 15,250 Lbs
– Capacity: 8.5 cubic yard
– Material: Made with Hardox 400 equivalent steel.
– Moisture/suction relief holes in back of bucket.
Caterpillar replacement parts:
– K170 series bucket teeth
368-3869: Tooth
368-3822: Bucket Tooth Adapter
132-0999: Tip Pin Retainer
3K-9770: 1 1/4”-7 Hex Nut
– Cast side protectors
329-5955 Protector
132-1008: Grooved Pin
132-0999: Tip Pin Retainer
3K-9770: 1 1/4”-7 Hex Nut
– Cast heel protectors
138-6551: Heel shroud
As always we recommend verifying measurements for fitment to your machine.
